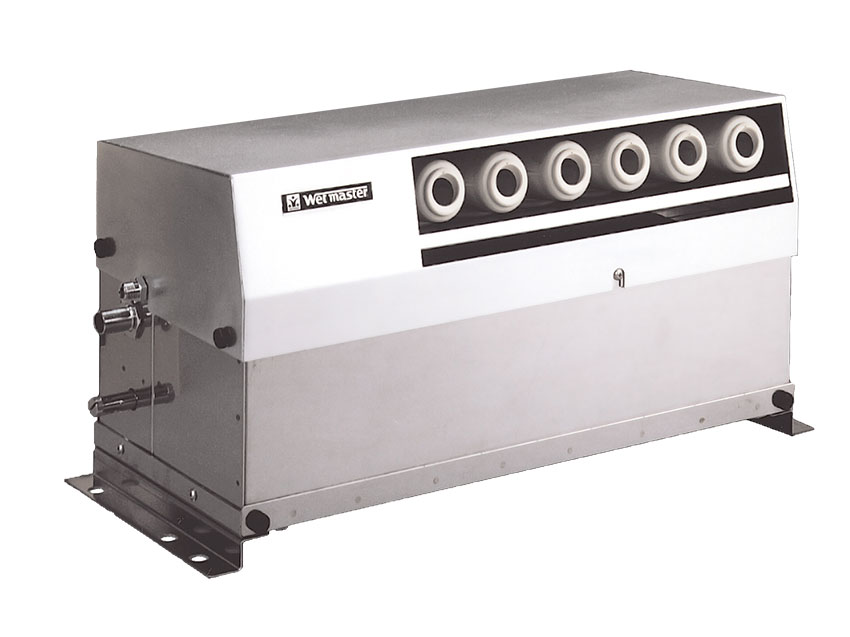

Ultrasonic humidifier BNB Type
[Single operation/indoor direct spray type]
Suitable for various industrial air-conditioning needs, such as in factories,
agricultural and livestock product storage warehouses, protected horticulture, etc.

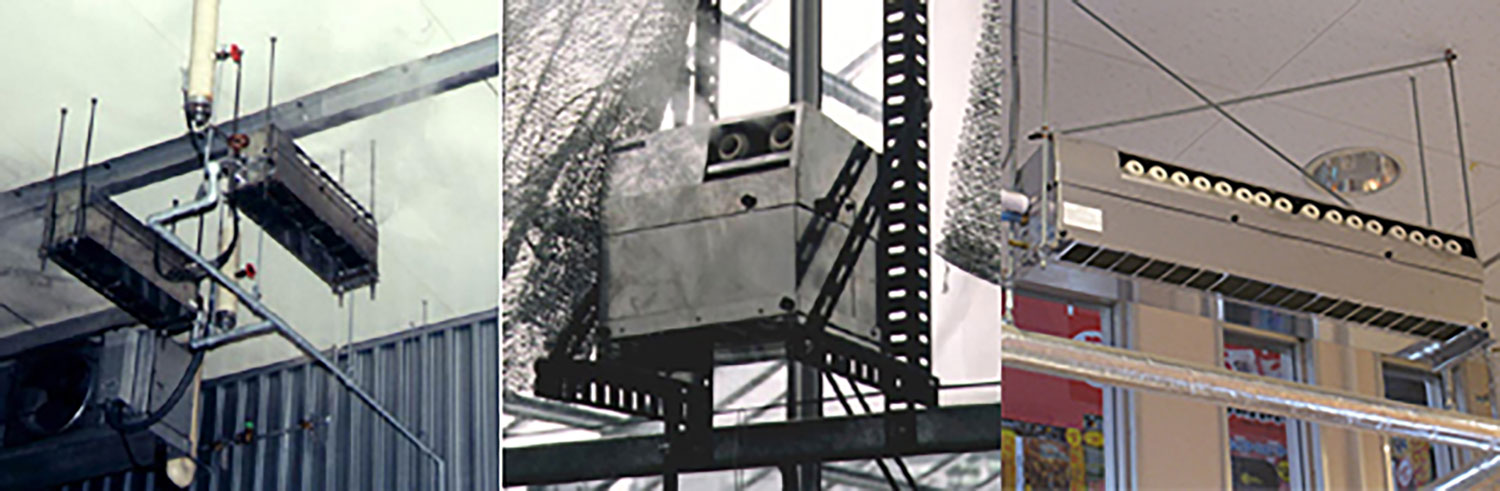

BNB Type is ultrasonic humidifiers. The humidifier with a built-in fan is installed in a room and connected to the transformer which supplies electricity. Since this system provides humidification in a room independent from the A/C unit, it can be used for variety of applications; it has been widely adopted for industrial air-conditioning, such as in factories, agricultural and livestock storage warehouse, protected horticulture, etc.
Various optional specifications are available in order to meet various operating conditions of industrial air-conditioning.
Features
- Ultrasonic is used to atomize superfine water particles in a room, which get diffused and vaporized rapidly, providing reliable humidification.
- Various optional specifications are available to meet the different operating conditions in the industrial air-conditioning.
- Excellent responsiveness: full capacity operation immediately after the power is turned on.
- The humidifier is made of durable stainless-steel.
- The humidifier is ready for operation immediately after the installation.
Specifications
| Type | Ultrasonic humidifier; WM-BNB type | |||||
|---|---|---|---|---|---|---|
| Model (WM-) | BNB 1000 | BNB 2000 | BNB 3000 | BNB 4000 | BNB 5000 | BNB 8000 |
| Nebulizing volume (kg/h) | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 8.0 |
| Effective humidification capacity (kg/h) | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 8.0 |
| Rated voltage | AC100V/200V 50/60Hz | |||||
| Rated power consumption (W) | 110 | 200 | 290 | 380 | 470 | 740 |
※ Depending on the quality of supply water, white powder may develop. This comes from the dissolved impurities in the water.To prevent this, water deionizer needs to be used.
※ Contents of this page are intended to use our product outside Japan. For use in Japan, contact our International Sales team (export@wetmaster.onmicrosoft.com).
