Evaporative type humidifiers VTD Type

[Single operation/ceiling mounted type, room direct humidifier]
This system can be used for wide range of applications from industrial to general air-conditioning.

VTD Type is a Evaporative type humidifier that drops water on the vaporizing material and humidifies a room directly by the built-in fan. Unit itself is installed on the ceiling with hangers or on the wall with brackets. Two models are available, which provide relatively high capacity as a stand-alone Evaporative type humidifier. This model can be used for various applications from industrial use in factories to the general air-conditioning.

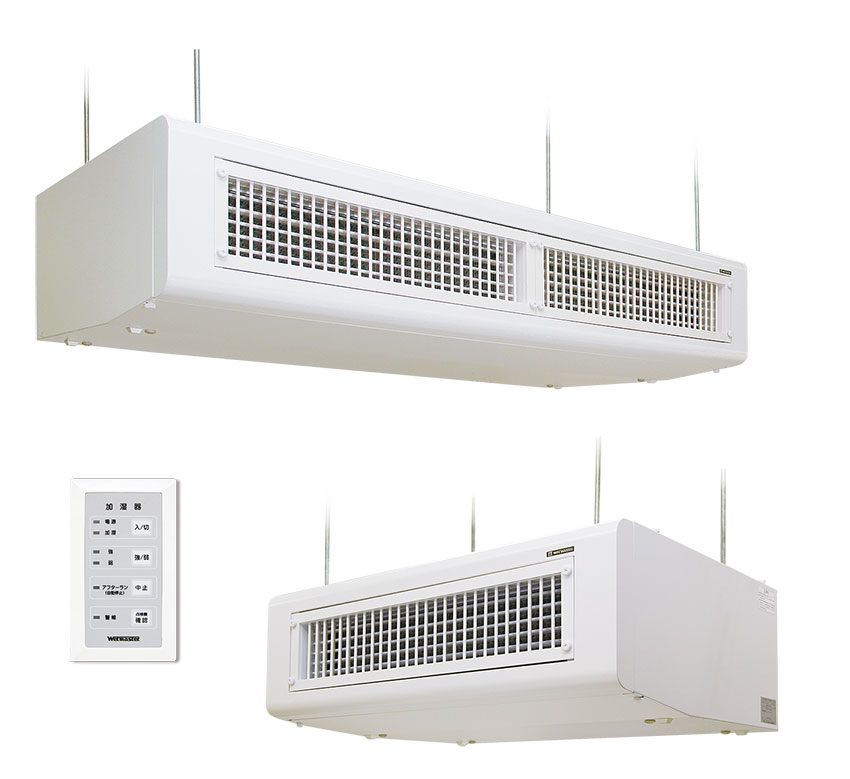

VTD Type

Major application

  • Building and space where a lot of people gather
  • School
  • Elderly facility
  • Printing factory
  • Textile factory
  • Distribution facility
  • Warehouse
  • Furniture shop
  • Server room
  • Museum

Features

  • Construction with no-standing-water shape of drain pan and a regular drying system are added. The regular drying system is an automatic forced drying system that is made once in every 24 hours. Hygiene humdification is achieved.
  • This unit has two louvers (horizontal and vertical) for precise airflow adjustment.
  • Since the heat of air in the room is used to vaporize water, it saves energy in the room.
  • Since this is a stand-alone unit, required number of units can be installed depending on the humidification load in the room. The expansion of the system is also easy.

Specifications

Type

Evaporative type humidifier; WM-VTD type

Model

WM-VTD3200

WM-VTD6400

Standard mode

Rated capacity(kg/h)

High

3.2/3.2 (50/60Hz)

6.4/6.4 (50/60Hz)

Low

2.9/2.8 (50/60Hz)

5.6/5.3 (50/60Hz)

Rated power
consumption(W)

High

105/125

200/245

Low

75/85

140/165

Operation noise(A)

High

43/44dB

45/46dB

Low

39/37dB

41/39dB

Silent operation mode

Rated capacity(kg/h)

High

2.9/2.8 (50/60Hz)

5.6/5.3 (50/60Hz)

Low

2.2/2.0 (50/60Hz)

4.1/3.7 (50/60Hz)

Rated power
consumption(W)

High

75/85

140/165

Low

50/50

90/95

Operation noise(A)

High

39/37dB

41/39dB

Low

31/28dB

33/30dB

Common specifications

Rating condition

Temperature and humidity of inlet air :
25deg.C/30%RH

Rated voltage

AC100V 50/60Hz

Use conditions

Ambient working conditions

5-40deg.C (freezing prohibited),80%RH or less

Suction air temperature

5-40deg.C

Supply water quality

Drinking water or equivalent

Supply water pressure &
temperature

0.05-0.5MPa,5-30deg.C

Safety devices

Drain pan high water level detection

Option

Wall mounting bracket
