Steam spray unit with decompression mechanism High steamer

[Unit built-in/to be built into the Air handling unit, packaged A/C, humidification chamber]
Steam spray unit with the proprietary decompression mechanism

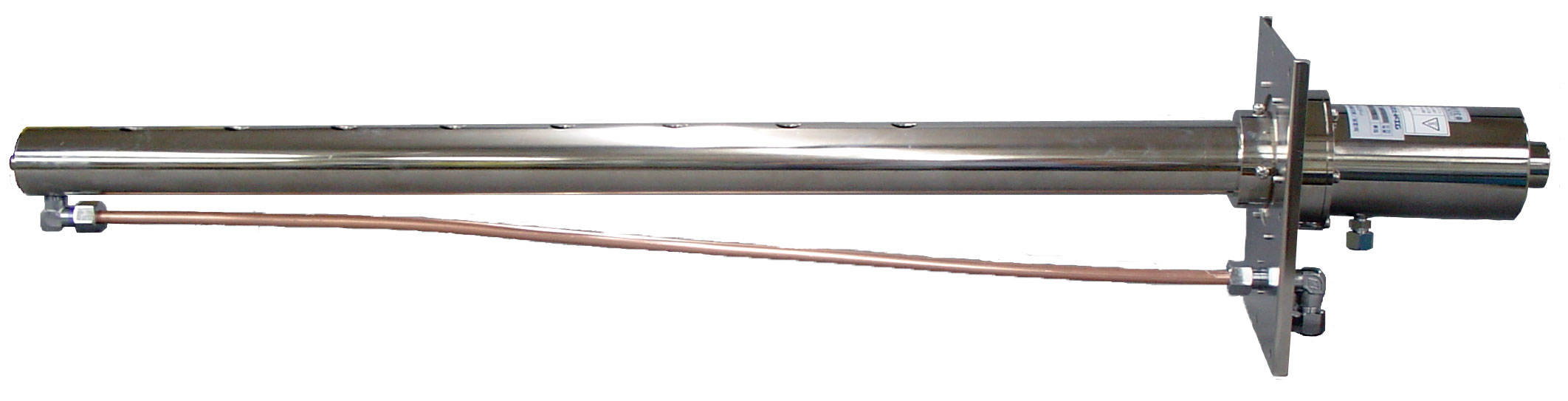

High steamer is a steam spray unit with decompression mechanism, in which raw steam supplied from the boiler is decompressed by the proprietary dry chamber (decompression mechanism) and sprayed from the manifold nozzle to the airflow in order to provide humidification. Combined with a commercially available control system, this system can provide highly efficient and controllable humidification. This system can be used in a wide range of applications in various air-conditioning fields, such as humidification for the Air handling unit, package A/C, and in humidification chamber.

Steam spray unit with decompression mechanism

Specifications

Model

Steam spray unit with decompression mechanism

Product name High steamer
Model (WM-) SG 102 SG 202 SG 402 SG 802 SG 1202 SG 1602
Supply steam pressure(MPa) 0.1-0.2
Steam spray volume (kg/h) 10 20 40 80 120 160
Adaptation adjusting valve Dimension(A) 15 15 15 15 25 25
CV value 1 1.6 2.5 6 10 10
Model (WM-) SG 101 SG 201 SG 401 SG 801 SG 1201 SG 1601
Supply steam pressure(MPa) 0.02-0.1MPa
Steam spray volume (kg/h) 10 20 40 80 120 160
Adaptation adjusting valve Dimension(A) 15 15 15 15 25 25
CV value 1 2.5 4 6 10 16
